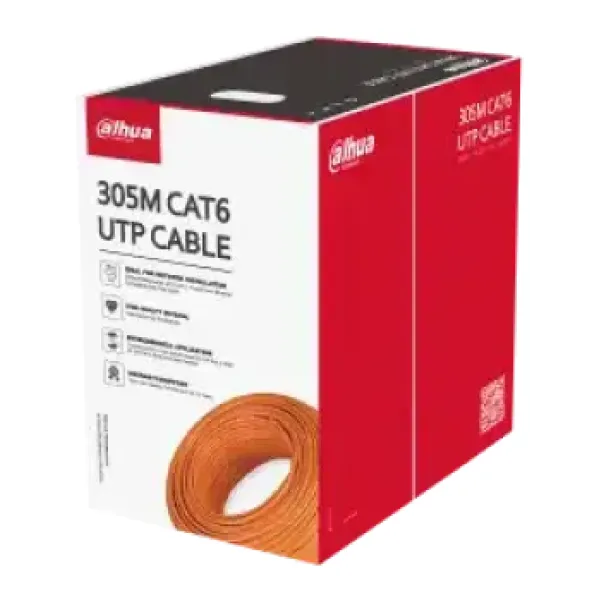

Dahua PFM922I-6UN-C Cat6 UTP Network Cable – 305m – CCA – PoE Compatible

Dahua PFM922I-6UN-C Cat6 UTP Network Cable – 305m

The Dahua PFM922I-6UN-C is a practical networking cable designed for Ethernet infrastructure, structured cabling, and compatible IP surveillance installations.

Supplied in a 305-meter reel, the cable uses 23AWG Copper-Clad Aluminum (CCA) conductors, HDPE insulation, and a PVC outer jacket. Dahua specifies the cable as PoE compatible when used with compatible equipment and installation requirements.

It is suitable for network installations in offices, commercial spaces, CCTV systems, IP camera projects, and other compatible indoor applications.

Key Features

• Cat6 U/UTP — Suitable for compatible Ethernet and structured cabling installations.

• 305-Meter Length — Practical for larger network cabling projects.

• CCA Conductors — Uses Copper-Clad Aluminum conductors.

• 23AWG Conductor Size — Designed according to the product specifications.

• PoE Compatible — Suitable for compatible Power over Ethernet installations.

• PE Separator — Helps maintain separation between the internal cable pairs.

• Polyester Rip Cord — Makes outer jacket removal easier during installation.

• HDPE Insulation — Provides insulation for the internal conductors.

• PVC Outer Jacket — Provides external protection for the cable.

• CPR Eca Certified — CPR Eca classification according to the listed product specifications.

• Operating Temperature: -20°C to +60°C.

305-Meter Network Cable

The PFM922I-6UN-C provides approximately 305 meters of network cable, making it suitable for installations that require long cable runs and a large quantity of network cable.

It can be used for Ethernet infrastructure, network points, IP cameras, and other compatible networking equipment.

Cat6 U/UTP Construction

The cable uses a Cat6 U/UTP construction with four twisted pairs and an internal separator designed to help maintain the structure and separation of the cable pairs.

The conductors are 23AWG CCA, with HDPE insulation and a PVC outer jacket.

PoE-Compatible Network Cabling

Dahua specifies the PFM922I-6UN-C as PoE compatible, making it suitable for compatible network installations where both data and power are transmitted through the Ethernet cable.

It can be used for applications such as:

• IP cameras

• Access points

• Compatible PoE networking devices

• IP surveillance systems

CCA Conductor – Important Note

The PFM922I-6UN-C uses Copper-Clad Aluminum (CCA) conductors with a specified copper content of 22%–31%.

This is not a solid copper cable. For installations with specific PoE, distance, or electrical requirements, verify that CCA cable is appropriate for the intended application before installation.

CPR Eca Certification

The cable carries a CPR Eca classification and uses a customized PVC outer jacket. Dahua also specifies compliance with EN 50575 Eca for the listed flame-retardant classification.

Easy Installation

The cable includes a PE separator to help maintain internal pair separation and a polyester rip cord that makes it easier to remove the outer jacket during cable preparation and termination.

Ideal For

• IP camera installations

• CCTV networks

• PoE installations

• Ethernet networks

• Structured cabling

• NVR and IP surveillance systems

• Network switches

• Routers and access points

• Offices

• Shops

• Warehouses

• Commercial buildings

• Professional network projects
