ITC T-103C Mini Ceiling Speaker 3W 6W – 70V/100V
Compact 3-Inch Ceiling Speaker with 70V/100V Transformer for Background Music and Paging

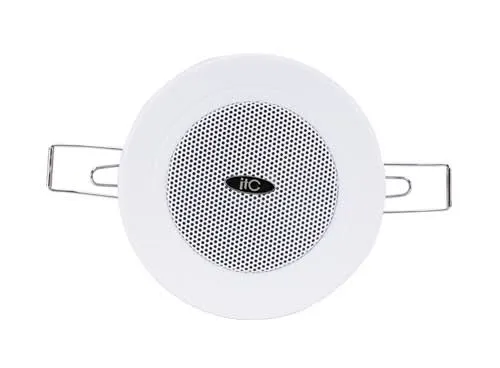

ITC T-103C Mini Ceiling Speaker – 3W / 6W
Add clear and discreet audio coverage to your space with the ITC T-103C Mini Ceiling Speaker, a compact 3-inch in-ceiling loudspeaker designed for background music, voice announcements and distributed public address systems.
The T-103C features a built-in 70V/100V transformer, allowing it to be integrated into professional distributed audio systems with multiple speakers. Its compact size makes it particularly suitable for installations where a smaller ceiling speaker is preferred.
Key Features
3-Inch Full-Range Speaker Driver — Compact driver designed for background music and voice applications.
70V/100V Built-in Transformer — Suitable for distributed PA and commercial audio systems.
3W / 6W Power Taps at 100V — Selectable power levels for installation flexibility.
1.5W / 3W Power Taps at 70V — Additional flexibility for 70V systems.
88dB SPL Sensitivity — Rated at 1W/1m.
Compact Mini Design — Ideal where installation space is limited.
Spring-Clip Mounting — Designed for quick and secure ceiling installation.
White Finish — Blends naturally with most ceiling interiors.
95mm Cutout — Compact installation opening.
Lightweight Construction — Approximately 0.5kg.
Compact 3-Inch Ceiling Speaker
The ITC T-103C is designed for locations where a full-size ceiling speaker is unnecessary or where installation space is limited.
Its 3-inch full-range driver provides a practical solution for distributing music and voice announcements across smaller rooms, corridors and commercial areas.
3W and 6W Selectable Power
At 100V, the T-103C provides two selectable power levels:
3W / 6W
For 70V systems, the available taps are:
1.5W / 3W
This allows installers to choose the appropriate power level according to the installation requirements, room size and number of speakers.
Designed for 70V / 100V Distributed Audio
The integrated transformer makes the T-103C suitable for distributed audio systems where multiple ceiling speakers are connected throughout a building.
This type of installation is commonly used for background music, paging and voice announcements in commercial and institutional environments.
Easy Ceiling Installation
The T-103C uses a movable spring-clip design for convenient installation. Its specified ceiling cutout is 95mm, with overall dimensions of approximately 104 × 78mm.
Ideal For
Hotels
Offices
Schools
Classrooms
Clubs
Restaurants
Retail stores
Corridors
Reception areas
Small commercial spaces
Background music systems
Paging systems
Voice announcement systems
70V/100V distributed audio systems
Technical Specifications
SpecificationDetailsBrandITCModelT-103CProduct TypeMini Ceiling SpeakerSpeaker Driver3-inch × 1TransformerBuilt-in 70V / 100VPower Taps @100V3W / 6WPower Taps @70V1.5W / 3WSensitivity88dB SPL (1W/1m)Frequency Response120Hz–20kHzCutout Size95mmDimensions104 × 78mmWeight0.5kgMountingMovable Spring ClipFinishWhite
